vortice punto helical aspirator m 90/3,5" 11150

SKU: 11150

£57.85VAT INCLUDED

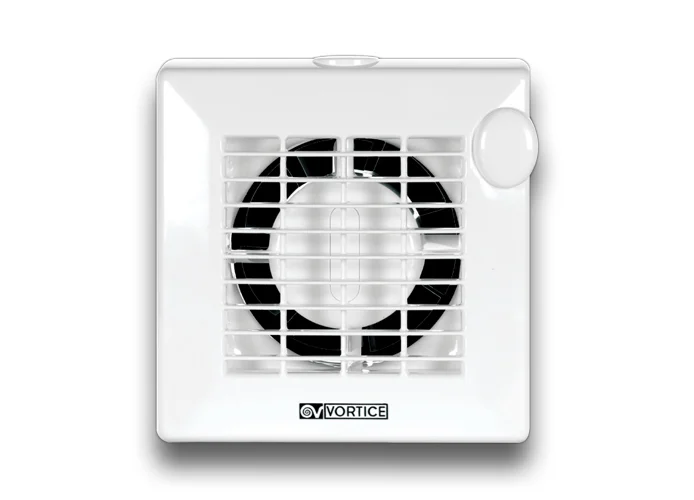

VORTICE - WALL HELICAL ASPIRATOR, PUNTO SERIES

- CONSTRUCTION IN PLASTIC RESIN RESISTANT TO AGEING DUE TO SUN EXPOSURE ("UV RESISTANT").
- NOMINAL DIAMETER 90 MM.
- THERMALLY PROTECTED MOTOR WITH SHAFT ON SELF-LUBRICATING BUSHINGS SUPPORTS, COMBINED WITH A HELICAL IMPELLER IN THERMOPLASTIC MATERIAL WITH WING PROFILE BLADES.
- MAXIMUM CAPACITY 70 M3/H.
- SAFETY AND PERFORMANCE CERTIFIED IMQ AND IMQ PERFORMANCE
- SPEED CONTROLLABLE BY VORTEX REGULATOR.



PUNTO M 90/3,5"  11150

MAX. CURRENT CONSUMPTION (A): 0.1
NOMINAL DUCT DIAMETER (MM) :90
FREQUENCY (HZ) :50
PROTECTION DEGREE :IPX4
INSULATION: 2ND CLASS
Ø EXHAUST (MM): 90
WEIGHT (KG): 0.55
MAX. POWER CONSUMPTION (W): 18
TEMP. ENVIRONMENT MAX. CONTINUOUS OPERATION (°C): 50
VOLTAGE (V): 230-240
MAX FLOW RATE (L/S): 19
MAX FLOW RATE (M³/H): 70
MAX PRESSURE (MMH2O): 2,3
MAX PRESSURE (PA): 23
SOUND PRESSURE LP [DB (A)] 3M: 39
RPM: 2500




SIZE A (MM):   159
SIZE B (MM):  160
SIZE C (MM):  100
SIZE D (MM):  47
SIZE E (MM):  Ø 92,5

  • Brand: VORTICE
