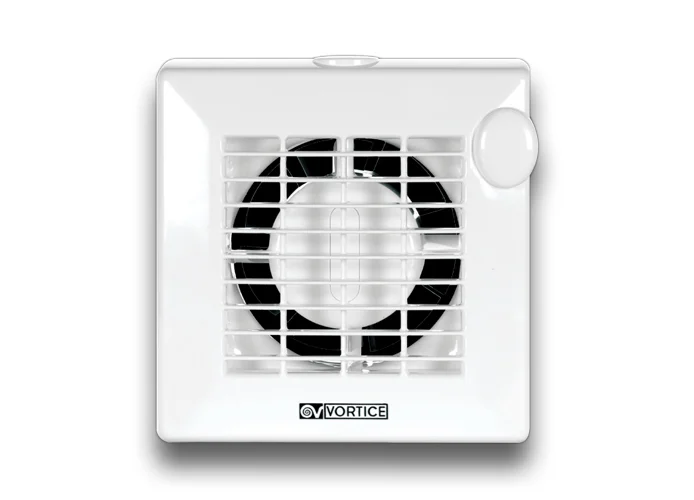

VORTICE - WALL HELICAL ASPIRATOR, PUNTO SERIES
- CONSTRUCTION IN PLASTIC RESIN RESISTANT TO AGEING DUE TO SUN EXPOSURE ("UV RESISTANT").
- NOMINAL DIAMETER 90 MM.
- THERMALLY PROTECTED MOTOR WITH SHAFT ON SELF-LUBRICATING BUSHINGS SUPPORTS, COMBINED WITH A HELICAL IMPELLER IN THERMOPLASTIC MATERIAL WITH WING PROFILE BLADES.
- MAXIMUM CAPACITY 70 M3/H.
- EQUIPPED WITH ELECTRONIC TIMER FOR AUTOMATIC PRODUCT SHUTDOWN AFTER A PRESET TIME THAT CAN BE SET, DURING INSTALLATION, IN THE 3'-20' INTERVAL (DEFAULT SETTING 3').
- SAFETY AND PERFORMANCE CERTIFIED IMQ AND IMQ PERFORMANCE.
PUNTO M 90/3,5" TIMER 11153
MAX. CURRENT CONSUMPTION (A): 0.1
NOMINAL DUCT DIAMETER (MM): 90
FREQUENCY (HZ): 50
PROTECTION DEGREE: IPX4
INSULATION: 2ND CLASS
Ø EXHAUST (MM): 90
WEIGHT (KG): 0.55
MAX. POWER CONSUMPTION (W): 18
TEMP. ENVIRONMENT MAX. CONTINUOUS OPERATION (°C): 50
VOLTAGE (V): 230-240
MAX FLOW RATE (L/S): 19
MAX FLOW RATE (M³/H): 70
MAX PRESSURE (MMH2O): 2,3
MAX PRESSURE (PA): 23
SOUND PRESSURE LP [DB (A)] 3M: 39
RPM: 2500
SIZE A (MM): 159
SIZE B (MM): 160
SIZE C (MM): 100
SIZE D (MM): 47
SIZE E (MM): Ø 92,5
