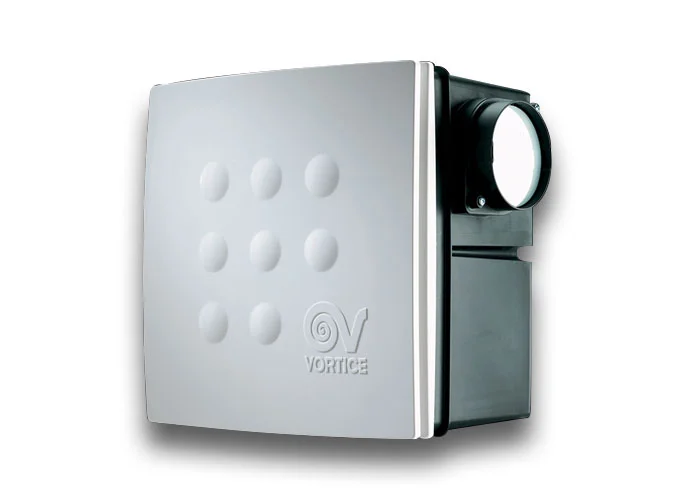

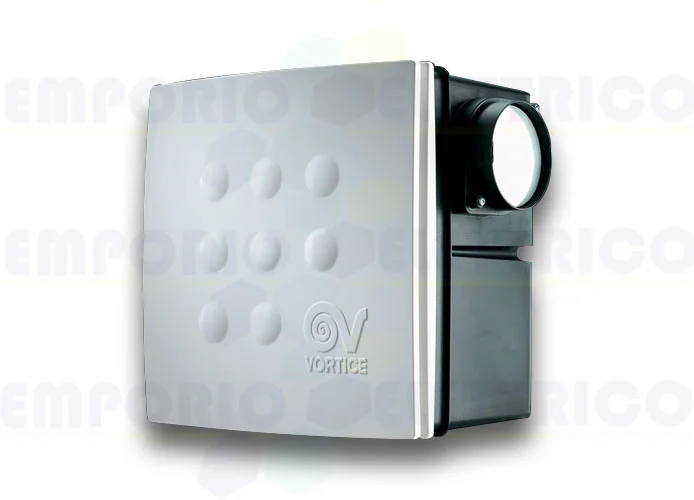

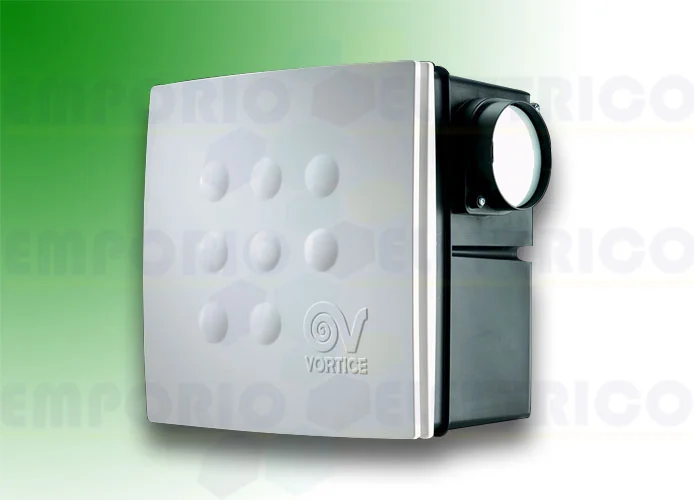

VORTICE - RECESSED CENTRIFUGAL ASPIRATOR SUPER VORT QUADRO SERIES.
- White ABS plastic resin construction for parts not recessed in the wall.
- Construction of black plastic resin (PP) filled with talcum powder to give greater strength to the parts to be walled in.
- Nominal diameter 100 mm.
- 3-speed fan using TRIO-S device (code 12871), consisting of: induction type motor with starting capacitor, equipped with protective thermo-fuse and self-lubricating bushings, forward-bladed rotation centrifuge.
- Saturated filter warning device.
VORTICE VORT QUADRO
12023
TECHNICAL FEATURES:
- MAX. ABSORBED CURRENT AT MAX. SPEED (A) 0,5
- MAX. ABSORBED CURRENT AT MIN. SPEED (A) 0,36
- NOMINAL DIAMETER (mm) 100
- FREQUENCY (Hz) 50
- DEGREE OF PROTECTION: IPX4
- INSULATION CLASS: II°
- Ø DISCHARGE HOLE (mm) 97
- WEIGHT (Kg) 4,27
- MAX. ABSORBED POWER AT MAX SPEED (W) 115
- MAX. ABSORBED POWER AT MIN SPEED (W) 50
- MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C) 50
- VOLTAGE (V) 220-240
- MAX. FLOW RATE AT MAX. SPEED (l/s) 79
- MAX. FLOW RATE AT MAX. SPEED (m³/h) 285
- MAX. FLOW RATE AT MIN. SPEED (l/s) 38
- MAX. FLOW RATE AT MIN. SPEED (m³/h) 140
- PRESSURE MAX - MAX SPEED (mmH2O) 48
- PRESSURE MAX - MAX SPEED (Pa) 476
- PRESSURE MAX - MIN SPEED (mmH2O) 20
- PRESSURE MAX - MIN SPEED (Pa) 196
- SIDE ASPIRATOR SOUND PRESSURE [dB(A)] 3m - max SPEED 44,6
- SIDE ASPIRATOR SOUND PRESSURE [dB(A)] 3m - min SPEED 30
- SOUND PRESSURE Lp [dB (A)] 3m - max SPEED 46,7
- SOUND PRESSURE Lp [dB (A)] 3m - min SPEED 33,6
- RPM max 2160
- RPM min 1300.
SIZE A (mm) 314
SIZE B (mm) 314
SIZE C (mm) 190
SIZE D (mm) 97
SIZE E (mm) 37
SIZE F (mm) 76
SIZE G (mm) 79
SIZE H (mm) 37
SIZE I (mm) 120
SIZE L (mm) 120.
