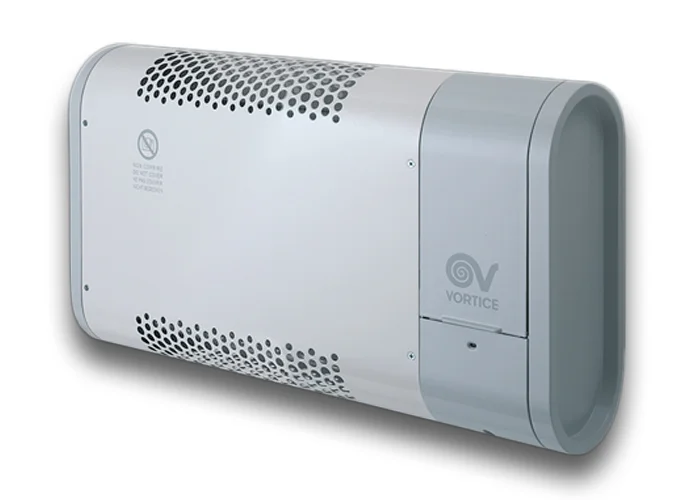

VORTICE - WALL THERMOCONVECTOR
• FRONT AND REAR PANELS, TOP AND BOTTOM GRILLES MADE OF STEEL WITH SCRATCH-RESISTANT PAINT FINISH, COLOUR GREY.
• ENDS AND SECTION HOUSING CONTROLS MADE OF SELF-EXTINGUISHING PLASTIC RATED V0, COLOUR GREY.
• METAL-CLAD HEATING ELEMENT WITH ALUMINIUM HEAT SINK; 2 HEAT OUTPUT SETTINGS: 300/600 W.
• THERMAL OVERLOAD CUTOUT WITH MANUAL RESET.
• LUMINOUS SWITCHES FOR ON/OFF CONTROL AND SELECTION OF HEAT OUTPUT SETTINGS.
• MANUALLY ADJUSTABLE ROOM THERMOSTAT WITH ANTIFREEZE FUNCTION GUARANTEEING AUTOMATIC ACTIVATION OF THE HEATER WHENEVER AMBIENT TEMPERATURE DROPS BELOW 5 °C.
• THE PRODUCT CAN BE CONNECTED TO AN EXTERNAL PROGRAMMABLE THERMOSTAT
• IMQ SAFETY CERTIFICATION.
MICROSOL 600-VO 70562
ABSORBED CURRENT MAX (A)2,6
ABSORBED POWER MAX (W)600
FREQUENCY (HZ)50
INSULATION CLASSI°
IPX4
VOLTAGE (V)230
WEIGHT (KG)2,9
SIZE A (MM)463
SIZE B (MM)258
SIZE C (MM)109
