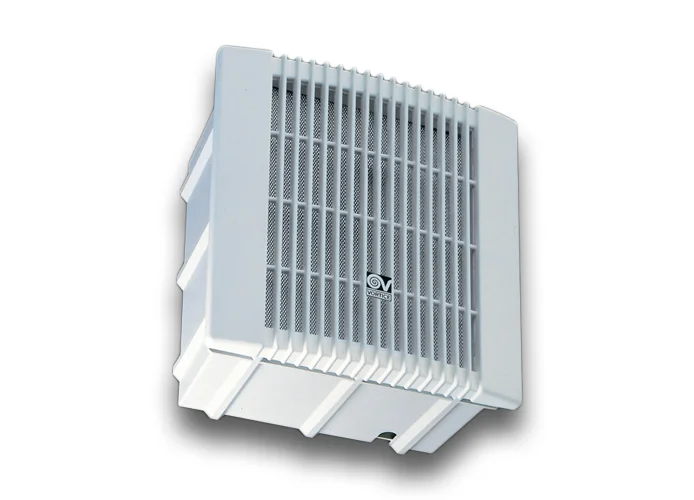

VORTICE - CENTRIFUGAL ASPIRATOR FOR AIR SHAFT, RECESSED SERIE, VORT PRESS LONG LIFE 30000h
• MATERIAL: UV RESISTANT PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT).
• NOMINAL DIAMETER 100 MM
• 2 SPEED MOTOR WITH THERMAL OVERLOAD PROTECTION AND SHAFT TURNING IN BALL BEARINGS.
• MINIMUM AIR FLOW, REAR OUTLET: 60 M3/H
MAXIMUM AIR FLOW, REAR OUTLET: 120 M3/H
• MINIMUM AIR FLOW, SIDE OUTLET: 50 M3/H
MAXIMUM AIR FLOW, SIDE OUTLET: 100 M3/H
• DOUBLE MOTOR-FAN ENCLOSURE, ANTIVIBRATION MOUNTS AND NON-RETURN DAMPER COMBINING TO ENSURE EXTREMELY QUIET OPERATION.
• SUPPLIED WITH FRONT GRILLE MOUNTING SPRINGS, SUITABLE FOR ANY KIND OF FALSE CEILING (65 MM MAX).
• REMOVABLE AND WASHABLE METAL MESH FILTER.
• OUTLET PORT EQUIPPED WITH NON-RETURN DAMPER.
• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS
• VORTICE SPEED CONTROLLER.
VORT PRESS 110 LL 11995
ABSORBED POWER 1ST SPEED (W): 12
FREQUENCY (HZ): 50
INSULATION CLASS: II°
IP: X4
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 40
MAX. ABSORBED CURRENT AT MAX. SPEED (A): 0,18
MAX. ABSORBED CURRENT AT MIN. SPEED (A): 0,07
MAX. ABSORBED POWER AT MAX SPEED (W): 24
NOMINAL DIAMETER (MM): 100
Ø DISCHARGE HOLE (MM): 96,5
VOLTAGE (V): 220-240
WEIGHT (KG): 2,1
DELIVERY 1ST SPEED (L/S): 16,7
DELIVERY 1ST SPEED (M³/H): 60
MAX DELIVERY AT MAX SPEED (L/S): 33,3
MAX DELIVERY AT MAX SPEED (M³/H): 120
MAX DELIVERY OF SIDE OUTLET AT MAX SPEED (L/S): 27,8
MAX DELIVERY OF SIDE OUTLET AT MAX SPEED (M³/H): 100
MAX DELIVERY OF SIDE OUTLET AT MIN SPEED (L/S): 13,9
MAX DELIVERY OF SIDE OUTLET AT MIN SPEED (M³/H): 50
MAX PRESSURE AT SIDE OUTLET - MAX SPEED (MMH2O): 13,5
MAX PRESSURE AT SIDE OUTLET - MIN SPEED (MMH2O): 8,3
MAX PRESSURE AT SIDE OUTLET - MIN SPEED (PA): 81
MAX PRESSURE AT SIDE OUTLET (PA): 132
PRESSURE - 1ST SPEED (MMH20): 8,9
PRESSURE - 1ST SPEED (PA): 87
PRESSURE MAX - MAX SPEED (MMH20): 14,5
PRESSURE MAX - MAX SPEED (PA): 142
RPM MAX: 1720
RPM MIN: 970
RPM SIDE AIR OUTLET - MAX SPEED: 1980
RPM SIDE AIR OUTLET - MIN SPEED: 1090
SOUND PRESSURE LEVEL LP [DB (A)] 3M - MAX SPEED: 41
SOUND PRESSURE LEVEL LP [DB (A)] 3M - MIN SPEED: 30
SIZE A (MM): 252
SIZE B (MM): 23
SIZE C (MM): 65
SIZE D (MM): 214,5
SIZE E (MM): 228
SIZE F (MM): 135,3
SIZE G (MM): 31,5/76,7
SIZE H (MM): Ø 96,5
SIZE I (MM): 180
SIZE J (MM): 92
SIZE K (MM): 76
SIZE L (MM): 92
SIZE M (MM): 76
