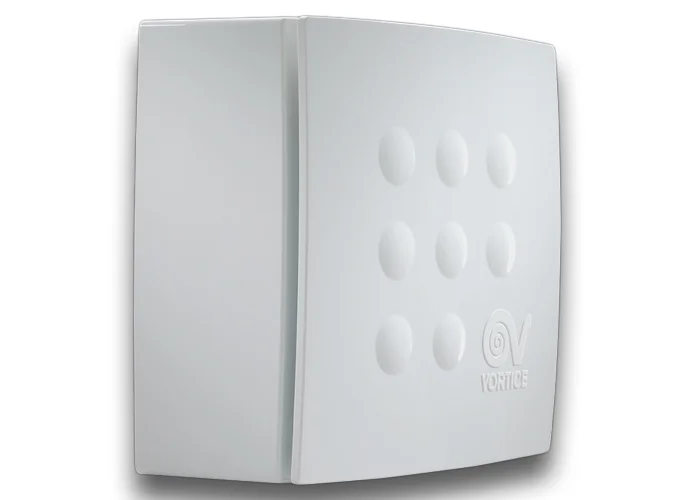

vortice vort quadro centrifugal aspirator micro 80 t 11648

SKU: 11648

£236.00  £210.04VAT INCLUDED

VORTICE - CENTRIFUGAL ASPIRATOR FOR AIR SHAFT, VORT QUADRO SERIES

• MATERIAL: WHITE ABS PLASTIC
• CAPACITOR START 2-SPEED INDUCTION MOTOR COUPLED TO A FORWARD BLADED CENTRIFUGAL IMPELLER. EQUIPPED WITH THERMAL OVERLOAD CUTOUT AND SELF-LUBRICATING BUSHINGS.
• NOMINAL DIAMETER 80 MM.
• MINIMUM AIR FLOW 60 M3/H
MAXIMUM AIR FLOW: 85 M3/H
• EQUIPPED WITH ELECTRONIC TIMER DESIGNED TO SHUT OFF THE MOTOR AUTOMATICALLY AFTER A SET INTERVAL, SELECTABLE DURING INSTALLATION IN THE RANGE 3’-20’ (DEFAULT SETTING 3’).
• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS.

VORT QUADRO Serie MICRO 80 T  11648

ABSORBED POWER 1ST SPEED (W):19
ABSORBED POWER MAX (W): 27
FREQUENCY (HZ): 50
INSULATION CLASS: II°
IP: X4
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
MAX. ABSORBED CURRENT AT MAX. SPEED (A): 0,13
MAX. ABSORBED CURRENT AT MIN. SPEED (A): 0,10
MAX. ABSORBED POWER AT MAX SPEED (W): 27
NOMINAL DIAMETER (MM): 80
Ø DISCHARGE HOLE (MM): 73,5
VOLTAGE (V): 220-240
WEIGHT (KG): 1,81
DELIVERY 1ST SPEED (L/S): 17
DELIVERY 1ST SPEED (M³/H): 60
MAX DELIVERY AT MAX SPEED (L/S): 24
MAX DELIVERY AT MAX SPEED (M³/H): 85
PRESSURE - 1ST SPEED (MMH20): 22
PRESSURE - 1ST SPEED (PA): 216
PRESSURE MAX - MAX SPEED (MMH20): 27
PRESSURE MAX - MAX SPEED (PA): 265
RPM MAX: 1580
RPM MIN: 1150
SOUND PRESSURE IN FREE AIR CONDITIONS [DB(A)] 3M: 28,7
SOUND PRESSURE LEVEL LP [DB (A)] 3M - MAX SPEED: 37
SOUND PRESSURE LEVEL LP [DB (A)] 3M - MIN SPEED: 28,7


SIZE A (MM): 239
SIZE B (MM): 195
SIZE C (MM): 197
SIZE D (MM): 85
SIZE E (MM): 74
SIZE F (MM): 64
SIZE G (MM): 60
SIZE I (MM): 100
SIZE L (MM): 20
SIZE T (MM): 117

  • Brand: VORTICE
