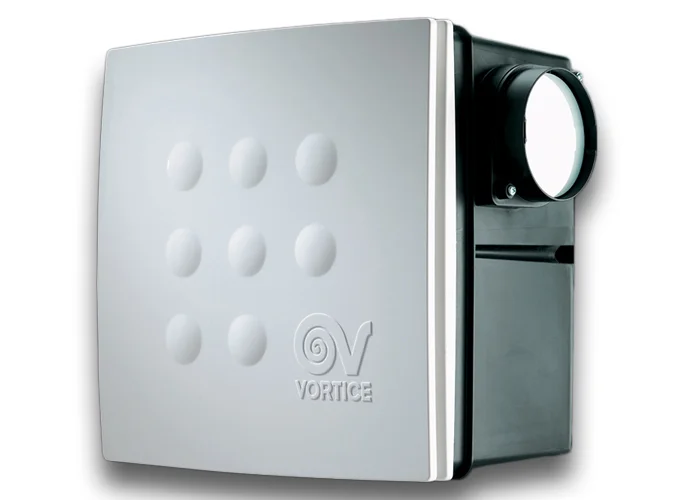

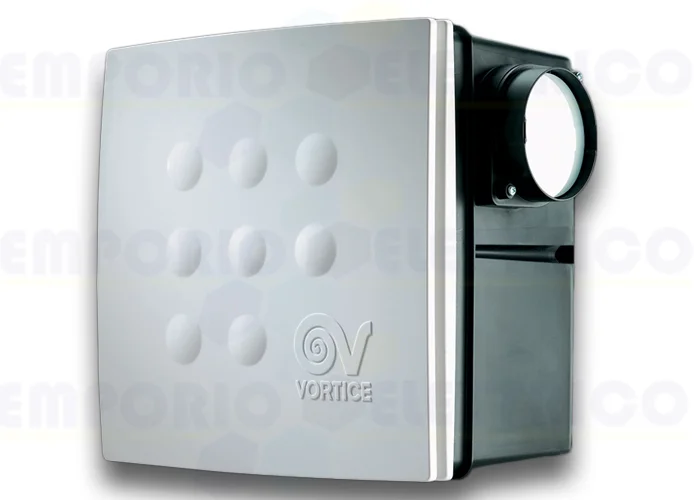

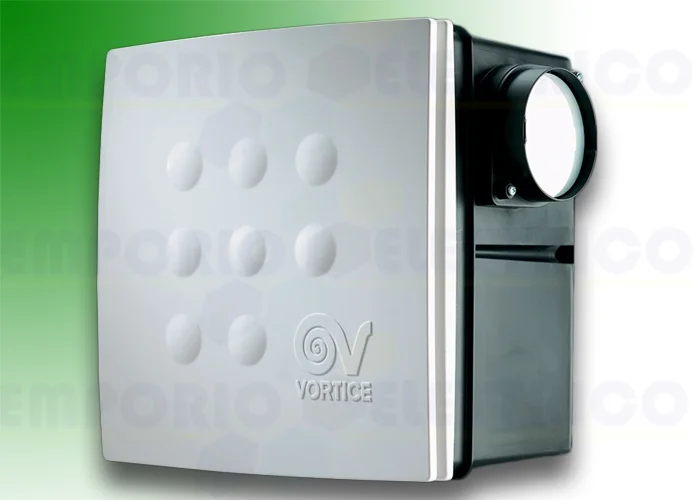

VORTICE - CENTRIFUGAL ASPIRATOR FOR AIR SHAFT, RECESSED SERIE, VORT QUADRO TIMER
• MATERIAL USED FOR PARTS NOT RECESSED INTO WALL: WHITE ABS PLASTIC.
• MATERIAL USED FOR PARTS RECESSED INTO WALL: TALC-FILLED BLACK PLASTIC (PP) GIVING ADDED STRENGTH.
• NOMINAL DIAMETER 100 MM.
• CAPACITOR START 2-SPEED INDUCTION MOTOR COUPLED TO A FORWARD BLADED CENTRIFUGAL IMPELLER, WITH THERMAL OVERLOAD CUTOUT AND SELF-LUBRICATING BUSHINGS.
• EQUIPPED WITH ELECTRONIC TIMER DESIGNED TO SHUT OFF THE MOTOR AUTOMATICALLY AFTER A SET INTERVAL, SELECTABLE DURING INSTALLATION IN THE RANGE 3’-20’ (DEFAULT SETTING 3’).
VORT QUADRO MEDIO I TIMER 12021
ABSORBED POWER 1ST SPEED (W): 25
FREQUENCY (HZ): 50
INSULATION CLASS: II°
IP: X4
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
MAX. ABSORBED CURRENT AT MAX. SPEED (A): 0,18
MAX. ABSORBED CURRENT AT MIN. SPEED (A): 0,14
MAX. ABSORBED POWER AT MAX SPEED (W): 29
NOMINAL DIAMETER (MM): 100
Ø DISCHARGE HOLE (MM): 97
VOLTAGE (V): 220-240
WEIGHT (KG): 2,8
DELIVERY 1ST SPEED (L/S): 19
DELIVERY 1ST SPEED (M³/H): 70
MAX DELIVERY AT MAX SPEED (L/S): 34
MAX DELIVERY AT MAX SPEED (M³/H): 122
PRESSURE - 1ST SPEED (MMH20): 21
PRESSURE - 1ST SPEED (PA): 206
PRESSURE MAX - MAX SPEED (MMH20):34
PRESSURE MAX - MAX SPEED (PA): 331
RPM MAX: 1890
RPM MIN: 1150
SOUND PRESSURE LEVEL LP [DB (A)] 3M - MAX SPEED: 41,2
SOUND PRESSURE LEVEL LP [DB (A)] 3M - MIN SPEED: 35,9
SOUND PRESSURE LEVEL SIDE EXTRACTION [DB(A)] 3M - MAX SPEED: 39,6
SOUND PRESSURE LEVEL SIDE EXTRACTION [DB(A)] 3M - MIN SPEED: 33,4
SIZE A (MM): 287
SIZE C (MM): 37
SIZE D (MM):97
SIZE E (MM): 103
SIZE F (MM): 72
SIZE G (MM): 69
SIZE H (MM): 130
SIZE L (MM): 26
